Custom Manufacturing Products

LDT Micro Precision Co.,Ltd. is capable of providing custom production of high precision products, following your technical specifications.

  • Spare Parts
  • Stamping Tool

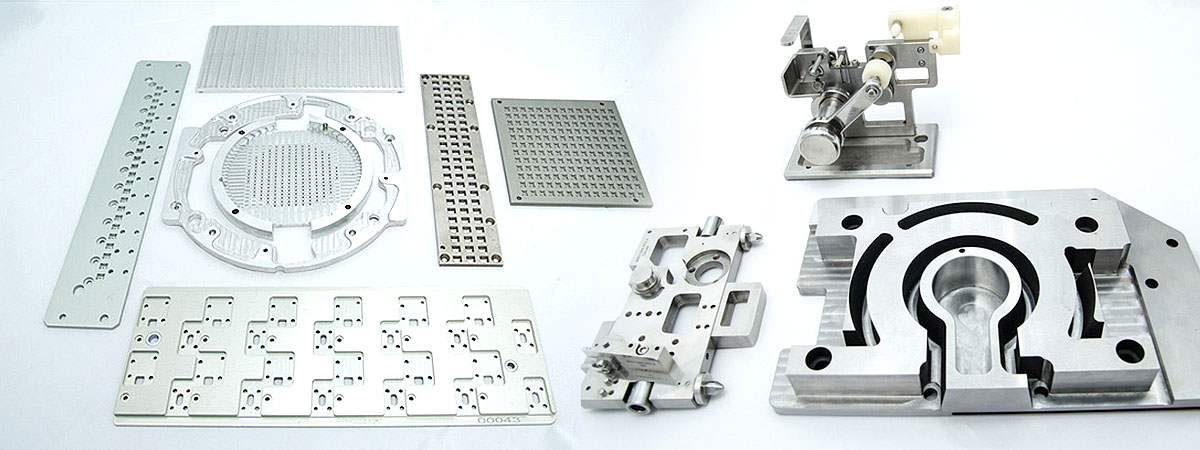

  • Sheet Metal

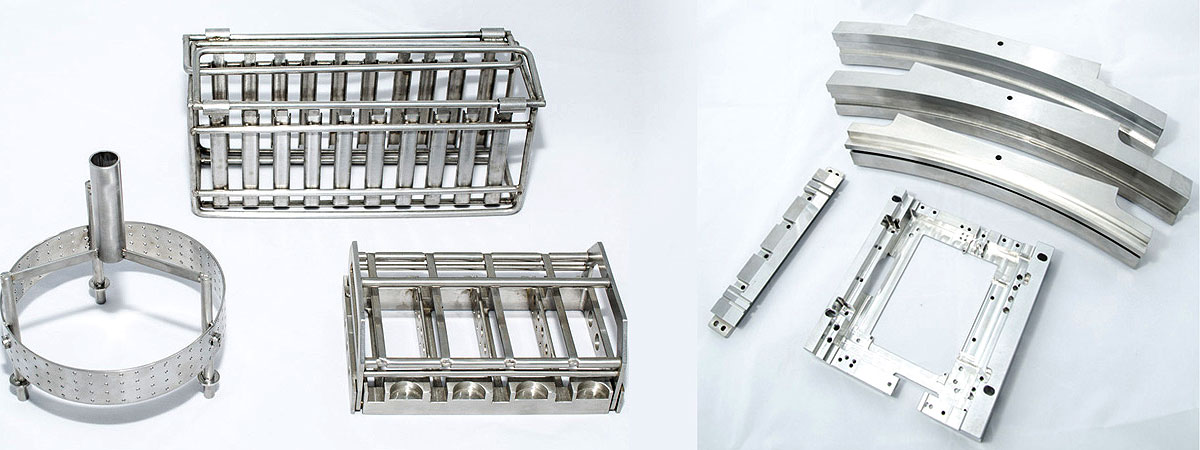

  • Cleaning Rack

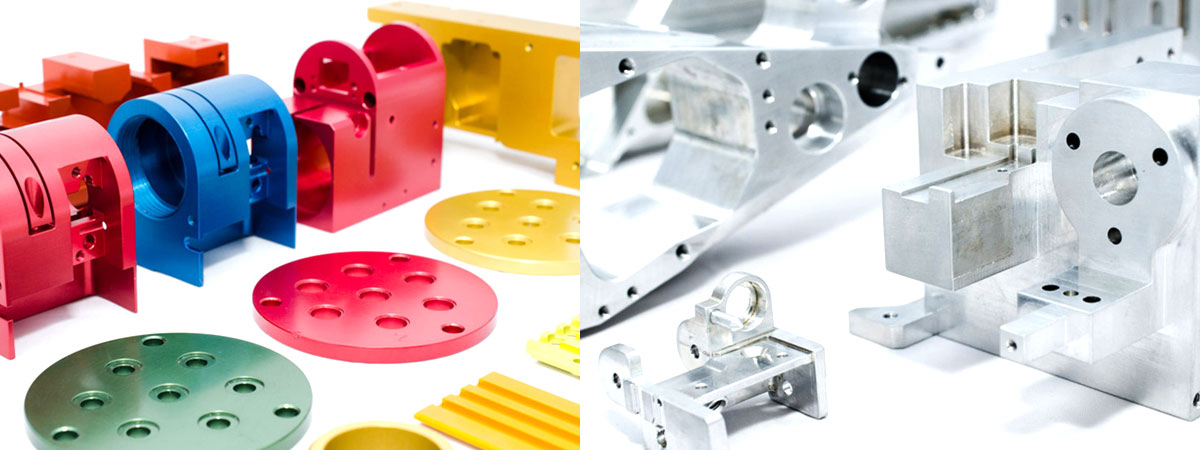

  • Machine Parts
  • Tool & Design
  • Argon Welding

We are well-facilitated with today’s most advanced tools & equipment in order to meet the most stringent requirements & specifications .

Floor Plan for Sheet Metal Production

Total Floor Area : 972m²

Our Equipment & Tools

Combi (Fiber Optic Laser) : TruMatic 1000

Dimensions :

(1) Width : 8100 mm

(2) Depth : 7800 mm

(3) Height : 2200 mm

(4) Max. Workpiece Weight : 230 kg

(5) Punching Force : 165kN

Max. Sheet Thickness :

(1) Stainless Steel : 6 mm

(2) Mild Steel : 6 mm

(3) Electro-Galvanised : 3 mm

(4) Aluminium : 5 mm

(5) Brass : 5 mm

(6) Copper : 3 mm

Punching Mode & Laser Operation :

(1) X-axis : 3000 mm

(2) Y-axis : 1500 mm



Combined Operation :

(1) X-axis : 2500 mm

(2) Y-axis : 1500 mm

Bending : TruBend 5130

TruBend 5130 :

Press force : 1300 kN

Bending Length : 3230 mm

Width between columns : 2690 mm

Max table/press beam distance : 505/735 mm

Usable open height : 385/615 mm

Throat depth : 420 mm

Working height : 1095 – 1115 mm

Press incline position : ±10 mm



Precision :

Y-axis : 0.005 mm

X-axis : 0.04 mm

R-axis : 0.08 mm



Dimension & Weight :

Length x Width : 3980 x 1800 mm

Height : 2375/2835 mm

Weight : 10700/11800 mm

Speeds :

Y-axis rapid traverse: 220 mm/s

Y-axis press operation : max 25 mm/s

Y-axis return speed : 220 mm/s

X-axis : 1000/1750 mm/s

R-axis : 330 mm/s

Z-axis : 1750/2500 mm/s

Clinching Machine : PEMSERTER Series 4 Press

  • Vibratory feeder bowl for automatic fastener feeding.
  • Rapid tooling changeover for short production runs
  • Insertion force adjustable 1.8 to 53.4 kN  or 400 to 1200 lbs
  • Automatically installs self clinching nuts studs and standoffs in size M2  / #0 though M10 / 3/8″ in steel, and size up to M12 / 1/2″ in Aluminium panels or circuit boards (plastics)

Welding Table : Tempus 3D Fix Series

  • German product with rugged solid steel and comprehensive bolted joint design.
  • Secure and stable by up to 580 kg net weight and leveling feet.
  • Table top with high strength steels of 35 mm thickness with 28 mm diameter hole grid
  • 100 x 100 mm line grid efficient clamping and fixing



Manual Milling
Manual Lathe
Manual Grinding
Wire Cut
EDM

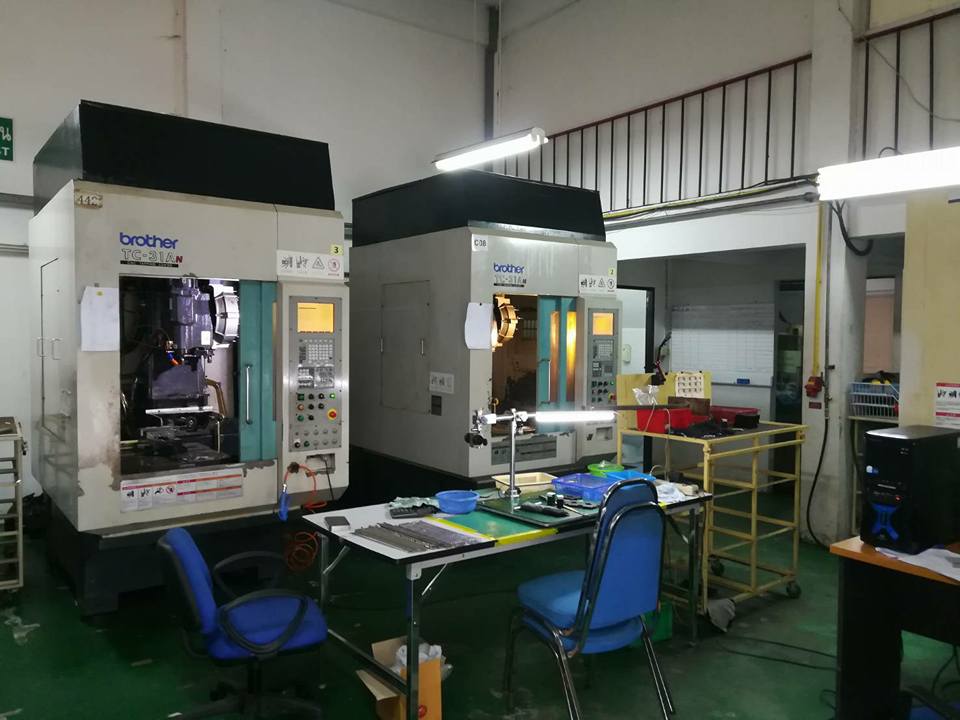

CNC Milling & Machining Center
CNC Milling & Machining Center
CNC Lathe
Laser Cut
Laser Welding
Laser Marking
CMM
Profile Projector
Non-Contact Inspection
Final Inspection
Super Drill
Auto Lathe (Bar Feed)
Visual Inspection & Assembly
